UNION OPTICAL CO., LTD. Zoom Microscope
UNION OPTICAL CO., LTD. Zoom Microscope
DZ4-T
1
Compact Size Zoom Microscope (Manual type)
Estimate separately
Product documentation
▲PAGE TOP
Description
●Lightweight/Compact
Reviewing all th design of optical system to realize lightweigt compactbody.
Being easier to be implemented into equipment as optical head.
●Zoom ration 12 (0.83x to 10x)
Enhancing lower magnification side to get wider viewing field.
Enhancing further workability and efficiency.
●Various kinds of objectives (5 kinds)
Magnification range covers 0.42x to 70x with these 5 objectives.
Sample observation can be realized under optimum conditions such as high resolution, long working distance or wider viewing field.
●LED illumination
In order to make its body compact, illumination is located at front or back.
▲PAGE TOP
Specifications
Correction system
Afocal
Zoom ratio
12
Image size
φ8 mm (1/2 CCD capability, with C-Mount)

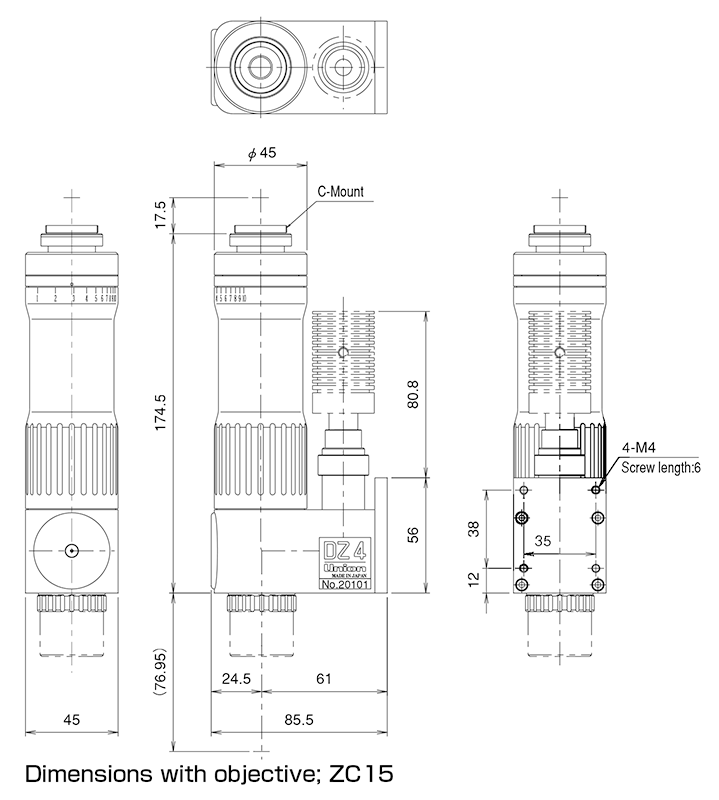

Length overall
174.5 mm
Weight
900 g
Illumination system
Coaxial Reflectiing Illumination
▲PAGE TOP
Objectives line-up
Example of use
