UNION OPTICAL CO., LTD. Zoom Microscope

Objectives for Compact Size Zoom Microscope

Estimate separately

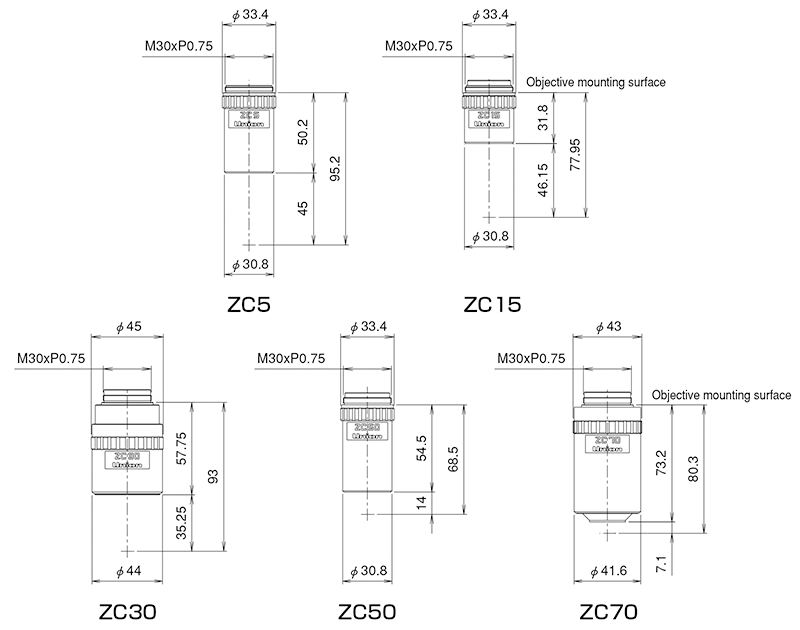

●ZC5 is the objective for DZ4-T/E, 0.42x to 5x magnification range and 45 mm working distance.
●M30xP0.75 objective thread diameter.

Supplemental note	*The total magnification is obtained with 1/2" CCD & 19" TV Monitor.
Optical magnification	0.42～5x
Total magnification	25.2～300x
N.A.	0.01～0.07
W.D.	45 ｍｍ
Resolution	33.55～4.79 μm
Focal depth	±2750～56.12 μm
Weight	190 g
