UWZ200P

1
Ultra-Long Working Distance Zoom Microscope
Estimateseparately

Product documentation

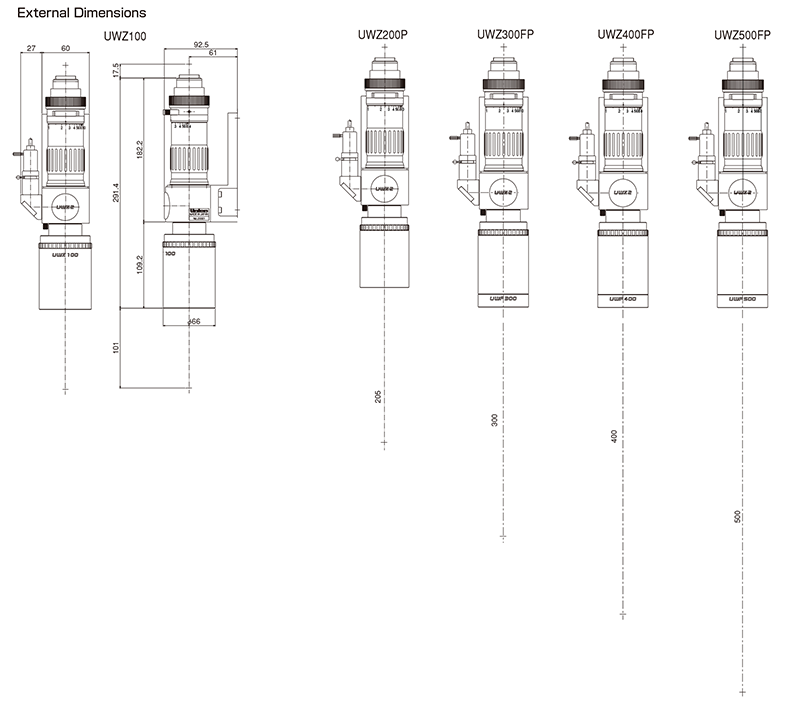

  • 図面PDF
▲PAGE TOP

Description

●Longer W.D. can achieve observing specimens in vacuum chamber.
●Longer W.D. can achieve observing specimens being out of reach before.
●Coaxial reflecting illumination can make image brighter and clearer.
●Zoom ratio 14X can be covered wide range of magnifications.
●λ/4 wave plate, polarizer & analyzer can improve internal reflection.
▲PAGE TOP

Specifications

Zoom ratio 14
Optical magnification 0.7x～9.8x
W.D. 205 mm
W.D. (with λ/4 wave plate) 195 mm
N.A. 0.014～0.093
Resolution (e-ray)(figuring out theoretically) 24 μm～3.6 μm
Focal depth (e-ray)(figuring out theoretically) ±1400 μm～31 μm
Field number/objective side φ11.4 mm～0.8 mm
Field number/viewing side φ8 mm C-Mount (applicable to 1/2inch CCD camera)
Corrected wave length 400 nm～700 nm
Illumination Coaxial Reflectiing Illumination (standard equipment)
▲PAGE TOP

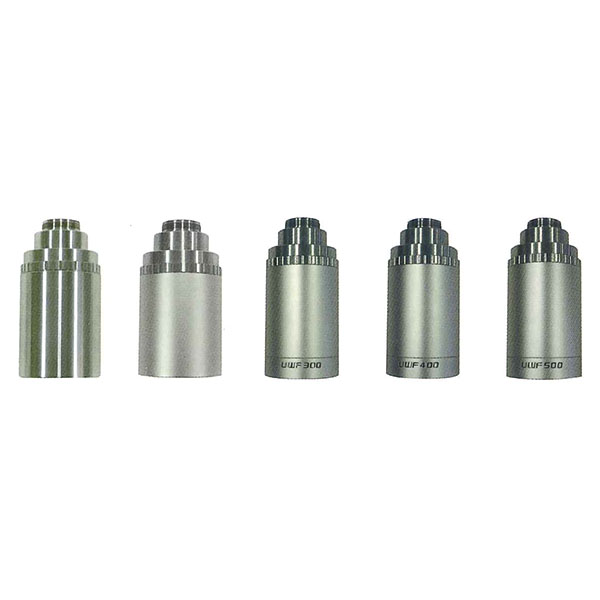

Objectives line-up

Example of use
