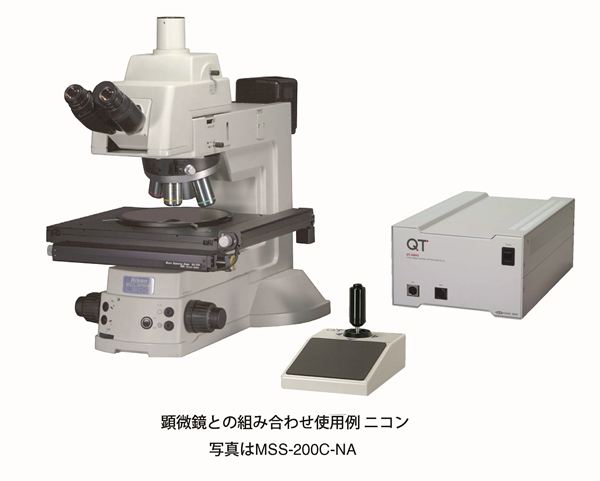

XY Motorized Stages for Microscopes

MSS-150D-NB

0
Micro Scanning Stage
Estimate separately
Travel XY axis +/-75 mm
Table size 280 mm x 230 mm
Compliant Microscopes Maker Nikon
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Thin and light-weight motorized XY stage with 150 mm x 150 mm travel and supports 6 inches.
Suitable for microscope applications, it is thin and light-weight without compromising accuracy.
It can also be used as transmitted illumination by removing the standard aluminum plate and using an optional glass plate.
*The range that can be observed with transmitted illumination is narrower than the amount of travel. Please refer to the table transparent hole in the external drawing.
▲PAGE TOP

Specifications

Direction of travel XY axis two directions
Travel XY axis +/-75 mm
Table size 280 mm x 230 mm
Motor PKP523N12A (5-wire type pentagonal connection 1.2 A/phase)
Resolution 0.002 mm
Feed screw Ball screw
Feed screw lead 1 mm
Guiding method V-groove and cross rollers
Travel accuracy Straightness 0.010 mm (horizontal), 0.015 mm (vertical)
Positioning accuracy 1/10stroke X axis:0.010 mm, Y axis:0.010 mm
Positioning accuracy fullstroke X axis:0.030 mm, Y axis:0.030 mm
Repeatability ±0.002 mm
Lost motion 0.003 mm
Load capacity 49 N (5 kgf）
Weight 5.1 kg (without Aluminum plate)
Maximum speed 40 mm/s (at 20,000 pps）
Material / Surface treatment Aluminum alloy/Black alumite
HOME sensor Normally closed contact (break contact, B contact）, Photo sensor
LIMIT sensor Normally closed contact (break contact, B contact）, Photo sensor
Compatible cable ACB-BTM2, ACB-BTM3, ARC-BTM3 (sold separately)
Standard accessories Inspection certificate
Aluminum plate
Adapter
Mounting screw : Hexagon socket head cap screw M4, 4 screws
Mounting screw for Adapter : Hexagon socket head cap screw M4, 4 screws
Compliant Microscopes Maker Nikon
Correspondence microscopes ECLIPSE LV100D
Supplemental note *Microscope spacer is included.
▲PAGE TOP

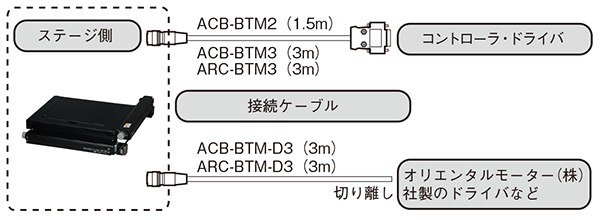

Connection method

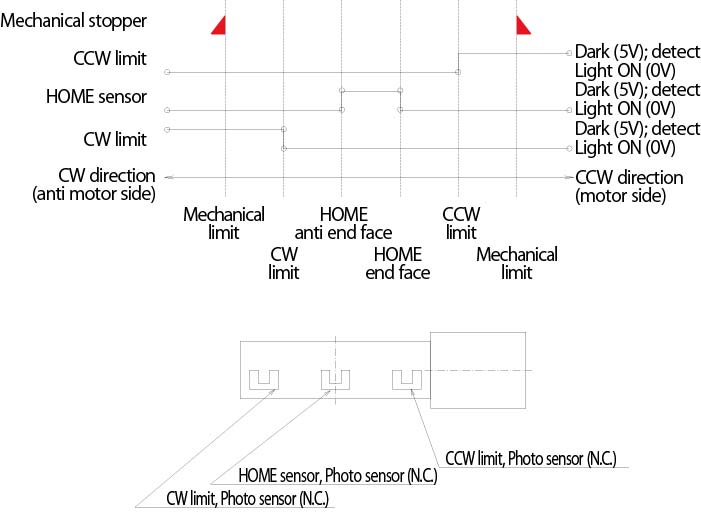

Operating principle of the Sensor and Timing Chart
