Laser Autofocus System (AF-L-IZ Type)

Estimate separately

Product documentation

Description

●Simple autofocus system with integrated controller and AF sensor unit.
●Can be mounted on a microscope illuminator without the need for various observation methods.

*AutoFocusSystem catalog (Published November 2024, English) is download from here. PDF download, approx. 9 megabytes. (Opens in a new window).

*Autofocus catalog (Published August 2020, old version, both English and Japanese) is download from here. PDF download, approx. 9 megabytes. (Opens in a new window).

CHUO AutofocusMicroscope Trailer Vol.2 YouTube

▲PAGE TOP

Specifications

Objective lenses	Compatible with major microscope manufacturers
Focusing	Muiti-point autofocus method
AF accuracy	within ±1/2 of depth of focus
Power supply	DC24V
Electrical power consumption	120W(Maximum)
AF controller Outside dimension	W80mm×D60mm×H150mm
Control function	Autofocus ON/OFF, Step movement, Return to Home position, AF pattern setting
Communication function	USB2.0 Tye-A, RS-232C, I/O
Capture range	5×：≧±5000μm, 10×：≧±5000μm, 20×：±1500μm, 50×：±350μm
Observation method	Bright field observation only
Camera mount	C-mount : image sensor size 1 inch or less
AF Light source	Laser diode (780 nm)
Detector	Area sensor
Z-axis drive unit	This can be combined with various drive units.
Control equipment	Built into the AF box

▲PAGE TOP

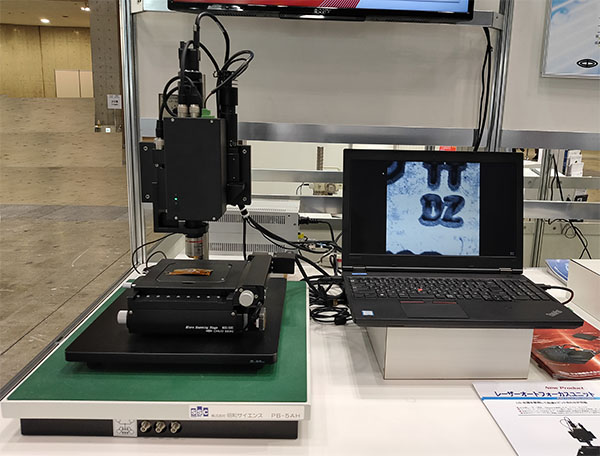

Description photos
