Objective Sliders

AF-OLS-06-MS

1
Objective Slider
Estimate separately
AF-OLS-MS

Product documentation

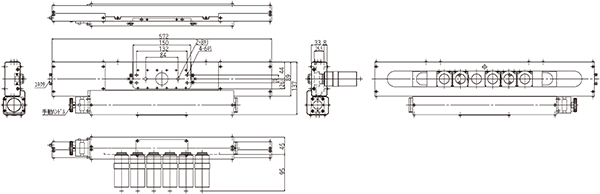

  • 図面PDF
▲PAGE TOP

Description

●Slider-type high performance objective lens switching unit.
●Stepper motor-driven objective lens switching unit designed for high precision and exceptional durability.
●Cn be combined with our autofocus system (AF-XXX series, AF-L series).

*AutoFocusSystem catalog (Published November 2024, English) is download from here. PDF download, approx. 9 megabytes. (Opens in a new window).
▲PAGE TOP

Specifications

Objective lens Compatible with major microscope manufacturers
Direction of travel 1 direction
Nosepiece: number of holes 6
Nosepiece: distance to the next lens 42 mm
Nosepiece: switching time (max) About 5 s
Nosepiece: switching time (min) About 1 s
Repeatability ±1 μm
Drive method 5-phase stepper motor (controlled by dedicated controller)
▲PAGE TOP

Examples of applications

▲PAGE TOP

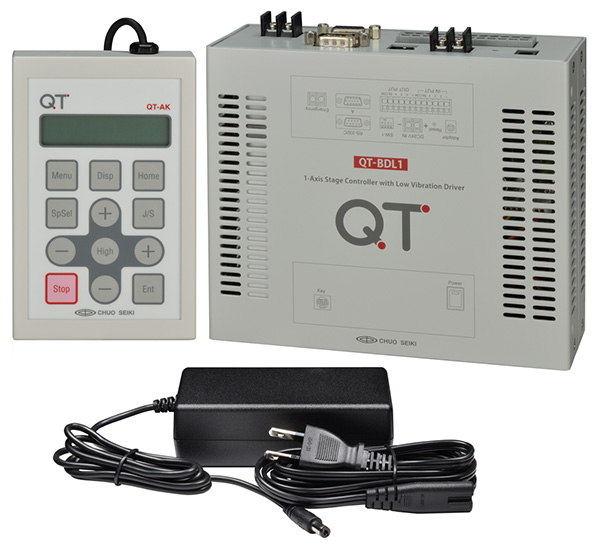

Controller

▲PAGE TOP
