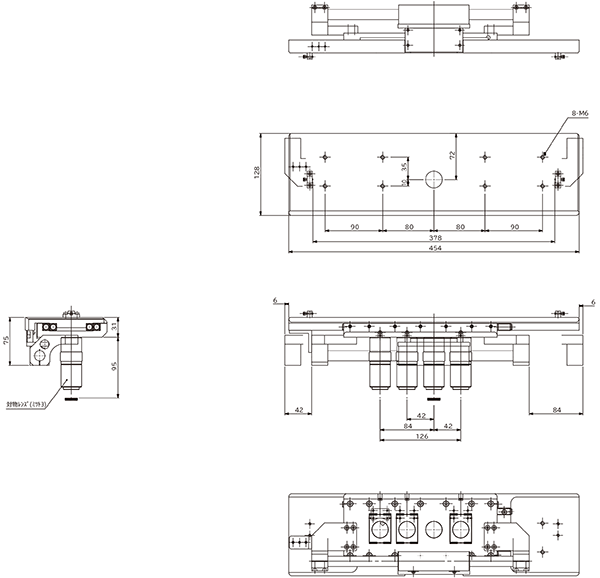

AF-OLS-04L-MS

1

Linear Objective Slider

Estimate separately

Product documentation

▲PAGE TOP

Description

●High performance objective lens switching unit by sliding type.
●Linear shaft motor driven objective lens switching unit achieving high speed, high precision, and high durability.
●Can be combined with our sutofocus system (AF-XXX series, AF-L series).

*Controller for linear shaft motor type AF-OLS-LS is required separately.

*AutoFocusSystem catalog (Published November 2024, English) is download from here. PDF download, approx. 9 megabytes. (Opens in a new window).

CHUO AutofocusMicroscope Trailer Vol.2 YouTube

▲PAGE TOP

Specifications

Observation method	Bright field ovservation, near ultraviolet, visible, and near infrared for laser processing
Objective lens	Compativle with major microscope manufacturers
Direction of travel	1 direction
Nosepiece: number of holes	4
Nosepiece: distance to the next lens	42 mm
Nosepiece: switching time (max)	0.7 s
Nosepiece: switching time (min)	0.4 s
Repeatability	±0.2 μm
Drive method	Linear shaft motor (Controlled by dedicated controller, feedback control by linear encoder)
