PCV-12-15

1
Plano-concave lens (uncoated)
Estimate separately
Classification Plano-concave lens (PCV)
Coating Uncoated
External form D(mm) φ12.0
f(mm) -15.0
Material N-SF11
Design Wavelength DWL 587.6nm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Plano-concave (PCV) lens has one flat and one inward curved surface. PCV lens has a negative focal length and is used for image reduction or to spread light.
▲PAGE TOP

Specifications

Classification Plano-concave lens (PCV)
Coating Uncoated
External form D(mm) φ12.0
f(mm) -15.0
B.f(mm) -16.68
t1(mm) 4.47
t2(mm) 3
Radius R1(mm) -11.77
Material N-SF11
Surface quality 40 - 20
Clear Aperture(mm) [Dia.] -1.0
Externals Tolerance(mm) 0/-0.1
Enter Thickness Tolerance(mm) ±0.1
Centering(mm) 3′～5′
Bevel PROTECTIVE BEVEL AS NEEDED
Design Wavelength DWL 587.6nm
Focal Length Tolerance(mm) ±1％
Edge Thickness ET Reference
▲PAGE TOP

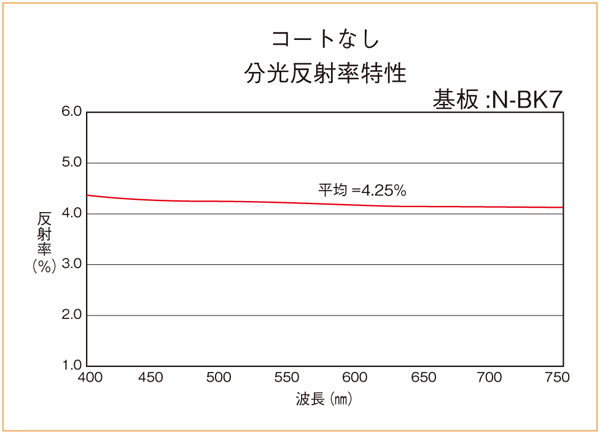

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

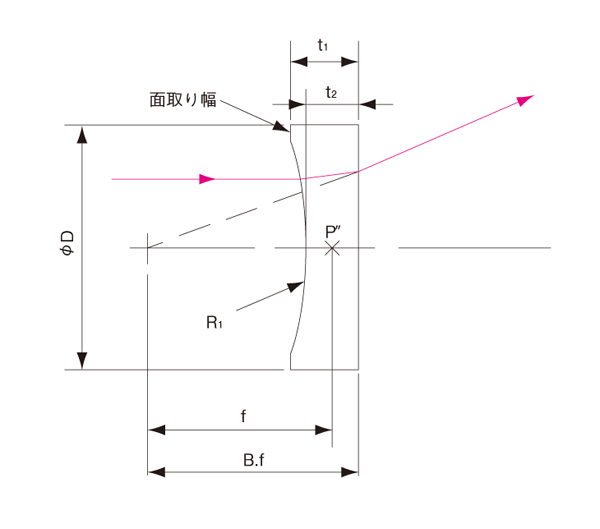

Specification drawings(or pictures)
