Achromatic Lenses

ACL-5-10V

1
Achromatic lens (VIS multi coated)
Estimate separately
Classification Achromatic lens (ACL)
Coating VIS multi coated
External form D(mm) φ5.0
f(mm) +10.0
Material N-BaF10/N-FD10
Design Wavelength DWL 587.6nm

Product documentation

  • カタログPDF
  • 技術資料
▲PAGE TOP

Description

Achromatic lens consists of two optical components cemented together to form an achromatic doublet which is computer optimized to correct for on-axis spherical and chromatic aberrations.
▲PAGE TOP

Specifications

Classification Achromatic lens (ACL)
Coating VIS multi coated
External form D(mm) φ5.0
f(mm) +10.0
B.f(mm) 8.56
t1(mm) 2.22
CT1(mm) 1.73
CT2(mm) 1.03
R1(mm) 7.17
R2(mm) -4.39
R3(mm) -33.96
Material N-BaF10/N-FD10
Surface quality 40-20
Clear Aperture(mm) [Dia.] -1.0
Externals Tolerance(mm) 0/-0.05
Enter Thickness Tolerance(mm) ±0.2
Centering(mm) 3′～5′
Design Wavelength DWL 587.6nm
Focal Length Tolerance(mm) ±2％
Chromatic aberration correction wavelength C-line（656.3nm）、F-line（486.1nm）
Edge Thickness ET Reference
▲PAGE TOP

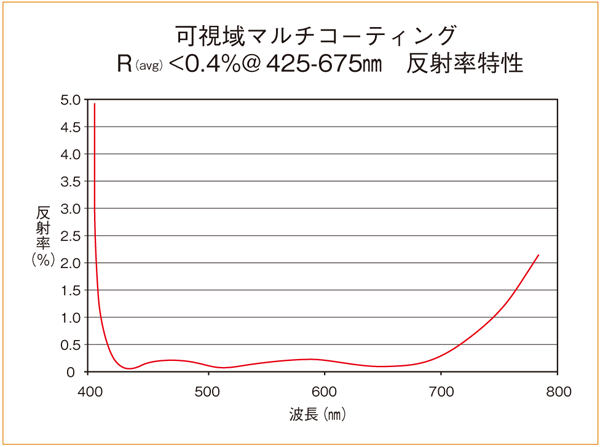

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

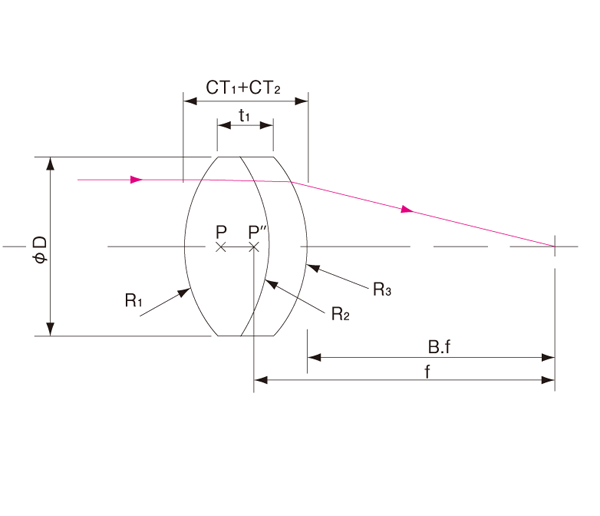

Specification drawings(or pictures)
