Cylinder Lenses

RDL-3-10

1
Rod lens
Estimate separately
Classification Rod lens （RDL）
Coating Uncoated
External form D(mm) φ3.0
Material N-BK7
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Rod Lens is polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line.
▲PAGE TOP

Specifications

Classification Rod lens （RDL）
Coating Uncoated
External form D(mm) φ3.0
Over-all length(mm) 10
Material N-BK7
Diameter Tolerance(mm) +0.0/-30μm
Length Tolerance(mm) +0.0/-0.1mm
Surface quality 40-20
▲PAGE TOP

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

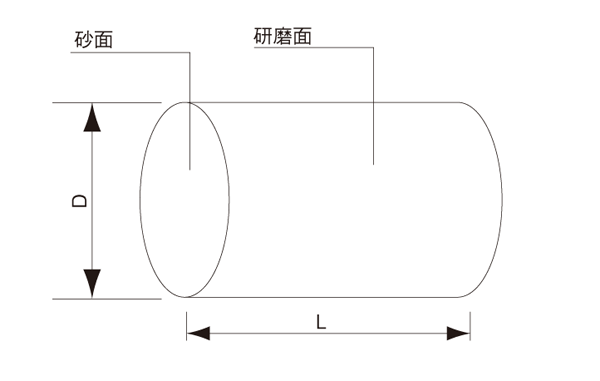

Specification drawings(or pictures)

▲PAGE TOP
