Laser Line Mirrors

MDC-030-0248

3
Laser mirror
Discontinued
Classification Laser mirror （MDC）
External form D(mm) φ30
Design Wavelength DWL 248nm

Product documentation

  • カタログPDF
  • 技術資料
▲PAGE TOP

Description

This is a dielectric multi layer mirror for front surface reflecting. The dielectric coating is designed to provide approximately 100% reflectivity and an angle of incidence 45°.
▲PAGE TOP

Specifications

Classification Laser mirror （MDC）
Coating Dielectric multi layer coated
Design Wavelength DWL 248nm
Reflection(％) ≧98
Damage Threshold, Pulsed 0.5J/cm2（10ns pulse）
External form D(mm) φ30
Externals Tolerance(mm) +0.0/-02mm
Thickness(mm) 5
Thickness Tolerance(mm) ±0.1mm
Material TEMPAX Float
Material(Coefficient of Thermal Expansion) 3.3×10-6/℃
Angle of Incidence 45°
Surface Accuracy λ/10
▲PAGE TOP

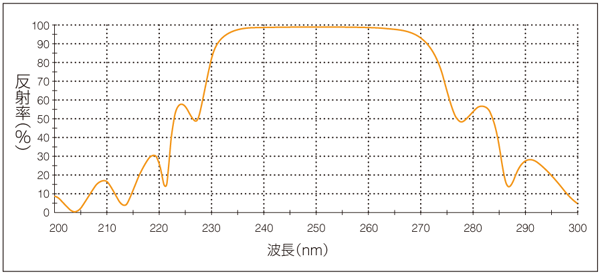

Curve(FOR REFERENCE ONLY)

spectrum/MDC-248.png
▲PAGE TOP

Specification drawings(or pictures)
