Laser Line Mirrors

YAMR-532W-12

1
Dual band Nd:YAG laser mirror （532nm）
Estimate separately
Classification Dual band Nd:YAG laser mirror （YAMR）
External form D(mm) φ12.5
Design Wavelength DWL 1064&532nm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Nd:YAG laser mirror offers the high reflectance and superior surface quality and accuracy needed for demanding Nd:YAG laser applications. Featuring a high damage threshold, that high power laser mirror is ideal for beam steering.
▲PAGE TOP

Specifications

Classification Dual band Nd:YAG laser mirror （YAMR）
Coating Dielectric multi layer coated
Design Wavelength DWL 1064&532nm
Reflection(％) >99（@design wavelength） >98（@1020-1110nm&510-560nm）
Damage Threshold, Pulsed >20J/cm2（20ns pulse ）
External form D(mm) φ12.5
Externals Tolerance(mm) +0.0/-02mm
Thickness(mm) 6
Thickness Tolerance(mm) ±0.2mm
Material Fused silica
Material(Coefficient of Thermal Expansion) 0.55×10-6/℃
Angle of Incidence 45°
Clear Aperture(mm) 11.25
Surface Accuracy λ/10（@632.8nm）
Surface quality 10 - 5
Parallelism <3′
Back surface Ground
▲PAGE TOP

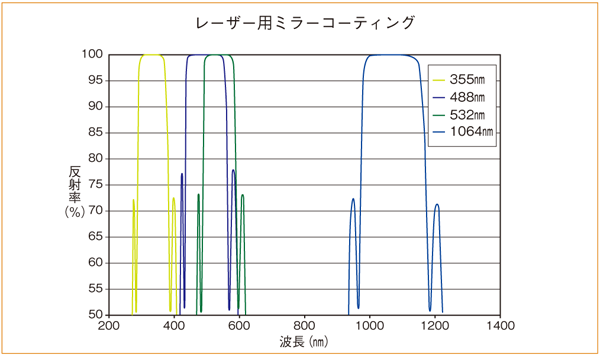

Curve(FOR REFERENCE ONLY)

spectrum/YAMR-ZU.png
▲PAGE TOP

Specification drawings(or pictures)
