Aluminum honeycomb Bread Board

TT-D3030

1
Honeycomb bread boad
Estimate separately
Outside dimension(Width×Depth×Height) 300mm×300mm×58.2mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

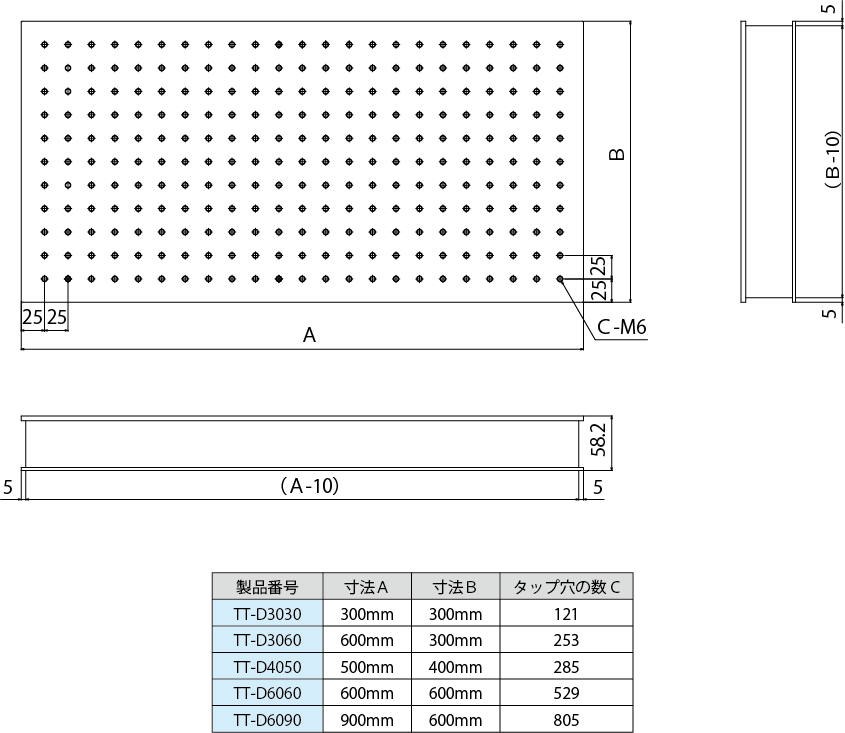

This is a small size honeycomb bread boad. The upper surface is made from magnetically adhesive stailnless steel. M6 screws are tapped every 25mm square.
▲PAGE TOP

Specifications

Outside dimension(Width×Depth×Height) 300mm×300mm×58.2mm
Number of tapped holes(C) 121
Plate material Stainless steel (SUS430)
Weight 7.8kg
Supplemental note ※Honeycomb bread boad is heavey product. So, it is required transportation cost separately.
