Stand

ES-12-70P

1
Stand φ12 L=70
Estimate separately
Diameter of the shaft fit φ12mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

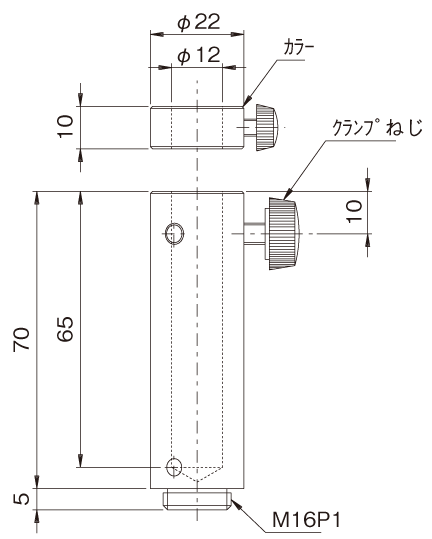

This is a stand for 12mm diameter (shaft or pole). It is equipped with three clamp screw holes and can be clamped any clamp screw. Collar is adapted.
▲PAGE TOP

Specifications

Diameter of the shaft fit φ12mm
Height 70mm
Number of clamp screws 2 (apply from June 1, 2018)
Screws on the bottom M16P1
Weight 0.06kg
