Stand

ES-20-35P

1
Stand φ20 L=35
Estimate separately
Diameter of the shaft fit φ20mm
YESRoHS対応状況

Product documentation

▲PAGE TOP

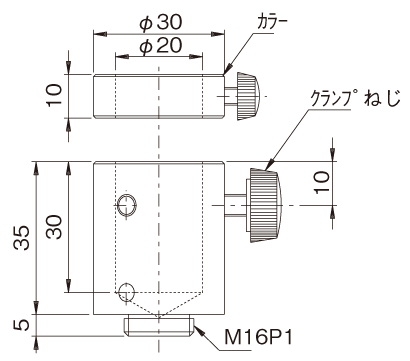

Description

This is a stand for 20mm diameter (shaft or pole). It is equipped with three clamp screw holes and can be clamped any clamp screw. Collar is adapted.
▲PAGE TOP

Specifications

Diameter of the shaft fit φ20mm
Height 35mm
Number of clamp screws 2 (apply from June 1, 2018)
Screws on the bottom M16P1
Weight 0.05kg
