Hot Mirrors & Cold Mirrors
COMR-12.5
1
Cold mirror
Estimate separately
Classification
Cold mirror
External form D(mm)
φ12.5
YES
Product documentation
YES
▲PAGE TOP
Description
This 45° angle of incidence hot mirror is perfect for decreasing the undesirable heat caused by infrared radiation. A multi-layer dielectric coating transmits 80% of visible light while reflecting over 90% of the NIR and IR, making them ideal for projection systems where heat build-up can lead to system damage. Made of BOROFLOAT glass, that hot mirror can be cut to the desired size for any application.
▲PAGE TOP
Specifications
Classification
Cold mirror
External form D(mm)
φ12.5
Externals Tolerance(mm)
±0.25
Thickness(mm)
1.1
Thickness Tolerance(mm)
±0.2mm
Material
BOROFLOAT
Clear Aperture(mm)
10.63
Surface Accuracy
4-6λ/25.4mm
Surface quality
80-50
▲PAGE TOP

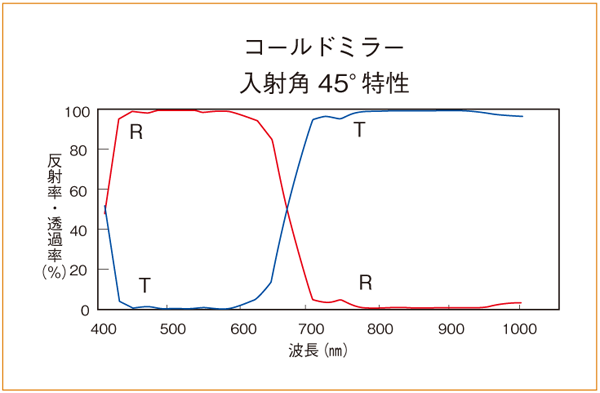

Curve(FOR REFERENCE ONLY)
▲PAGE TOP

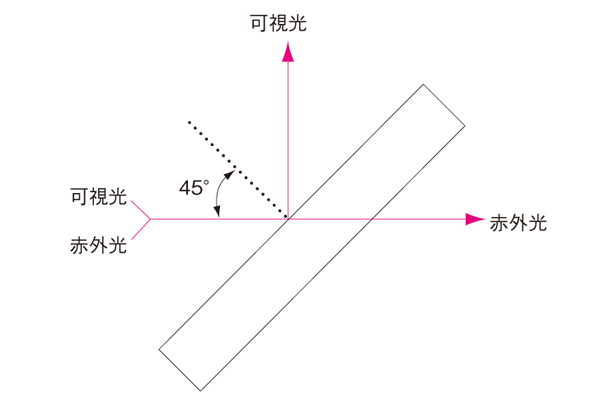

Specification drawings(or pictures)
