Cone mirror
Estimate separately
Classification Cone mirror (CNMR)
External form D(mm) 10
YESRoHS対応状況

Product documentation

▲PAGE TOP

Description

Cone mirror is ideal for laser and imaging systems, and for applications requiring 360° illumination. The cone mirror has a polished cone top and base, and a fine ground circumference.
▲PAGE TOP

Specifications

Classification Cone mirror (CNMR)
Coating Aluminum coated
External form D(mm) 10
Externals Tolerance(mm) 0/-0.05
Over-all length(mm) 15
Length Tolerance(mm) ±0.10
High base(mm) 10
Angle tolerance 90°±6′
Surface quality 40-20
Edge Chip Max.0.2mm
▲PAGE TOP

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

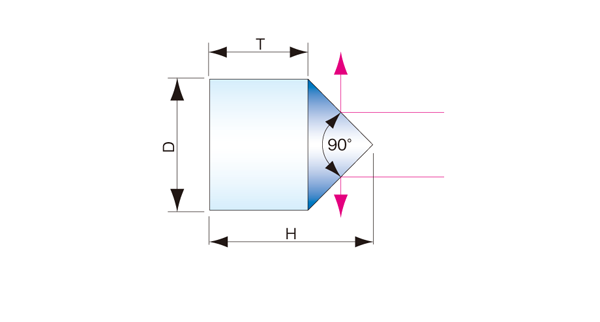

Specification drawings(or pictures)
