RAMR-5REA

1
Right angle prism mirror (protected gold coated)
Estimate separately
Coating Protected gold coated
Coat type Right angle both face coated

Product documentation

  • カタログPDF
  • 技術資料
▲PAGE TOP

Description

Right angle prism mirror is easily mounted, and is ideal for applications requiring precision alignment and high performance. Right angle prism mirror reflects incident light at 90°, and is crucial in many optical systems.
▲PAGE TOP

Specifications

Coating Protected gold coated
Coat type Right angle both face coated
External form A=C(mm) 5.0×5.0
External form B(mm) 7.1
Externals Tolerance(mm) ±0.1
Angle tolerance ±2′
Surface Accuracy 1/8λ
Bevel PROTECTIVE BEVEL AS NEEDED
▲PAGE TOP

Curve(FOR REFERENCE ONLY)

▲PAGE TOP

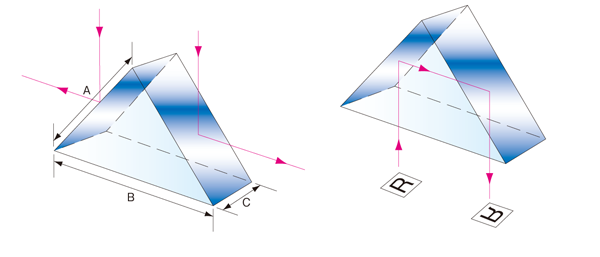

Specification drawings(or pictures)
